Charts From Excel, A Quick Guide

  • , Consultant

Note: the process described below was tested on a OneStream 7.3.1 version environment. The steps may differ depending on the OneStream version.

As a CPM platform, OneStream has tons of different possibilities to build your own, more specific charts. The combination between the multiple ways on loading data (through direct connections, delimited files, data forms, journals, among others) and the powerful BI Blend tools, allow the OneStream user to fill his/her needs with the highest quality.

One of those possibilities is to pull data tables from Excel files. The process is one of the quickest ways to have manipulable data into the environment, needed to test reports.

As a starting point, let’s import the Excel file into the OneStream File System. To do so:

  • 1) Click on the “File Explorer” icon at the top-left corner of the window.
  • 2) Choose a destination folder to import your Excel file (for example, “Public”).
  • 3) Click on the “Upload File” button to import your file.

OneStream File Explorer

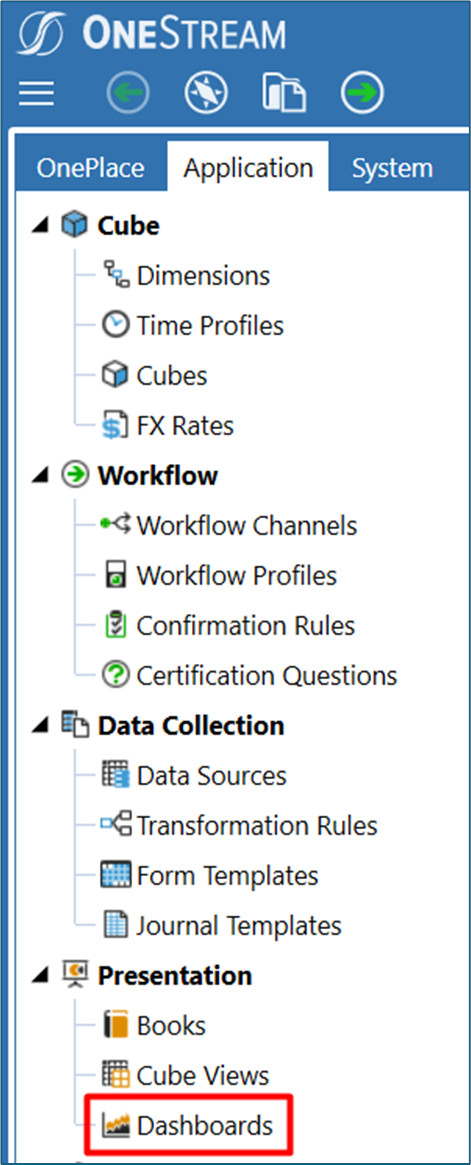

Then, go to the Dashboards menu by clicking on “Dashboard” in the Application left panel:

OneStream Application Presentation Dashboards

After that, create a new Data Adapter in a new/existing Maintenance Unit. For example:

OneStream Excel Data Tables

To create a table from an Excel file, the options must be selected as following:

  • Command Type = Method
  • Method Type = ExcelFile
  • Method Query = (see below)
  • Results Table Name = (optional)

The Method Query has the following syntax:


Then, each field should be filled as described below:

  • FileSourceType = Application
  • UrlOrFullFileName = Documents/Public/FileName.xfDoc.xlsx
  • Sheet = SheetName or Empty
  • NamedRange = RangeName or Empty
  • UseFirstRowForColumnNames = True or False
  • IncludeNumericColumns = True
  • Filter = Empty

There’re some comments regarding the mentioned properties:

  • Make sure that file’s extension is “xfDoc.xlsx”.
  • If the Excel file is saved in any other place rather than the “Public” folder, then the URL should be updated.
  • If the table is created using one specific sheet or range, it must be clarified. Otherwise, those properties should be empty.
  • If the first row is used for column names, verify that those names don’t have blank spaces or special characters.
  • “IncludeNumericColumns” can be set as False, but it’s highly recommended to set as True for reporting purposes. If it’s set as True, OneStream will clone each source column using numeric format.

If needed, remember that the Excel file can always be opened, edited and saved using the Spreadsheet tool:

OneStream Excel Tool Spreadsheet

Here’s a sample of query:


In other words, I’m pulling the sheet “ByProduct” of the Excel file from the public folder. I’m using the first row as column names, and I’m including numeric columns. Finally, I’m not using any ranges or filters.

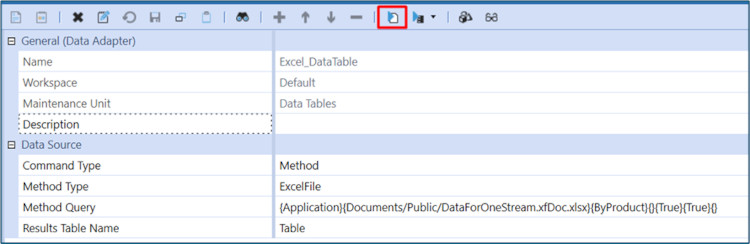

To test the data adapter, click on the “Test Data Adapter” button:

OneStream Data Adapter

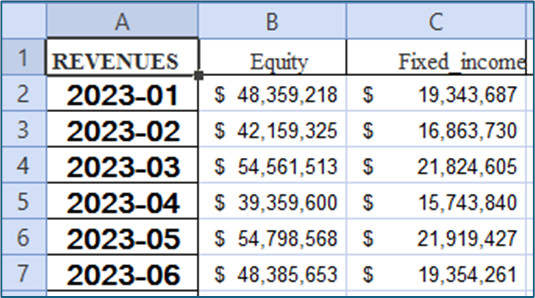

Source Excel file:

OneStream Excel File Sample

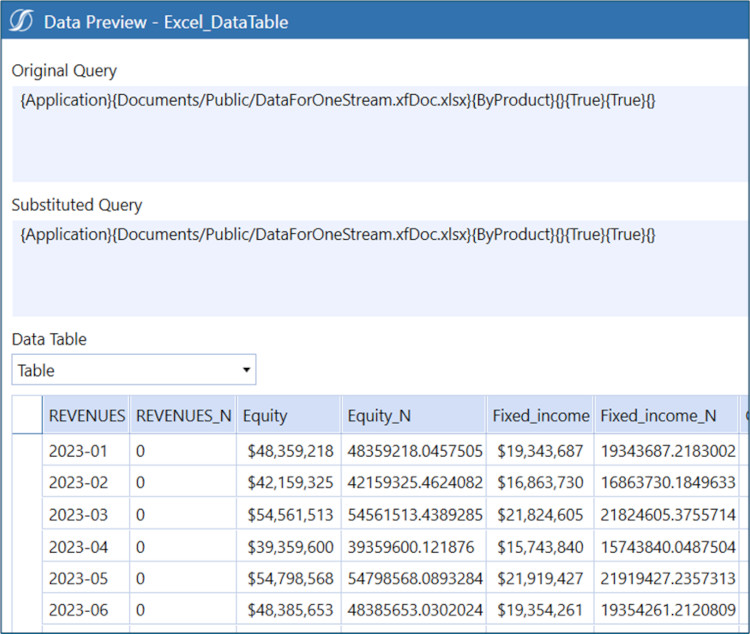

Resulting data table:

OneStream Data Preview Table

The columns with “_N” suffix are the clones from the source column, with numeric format. Then, those columns can be used in BI Blend to create customized reports for example.

To do so, assign the data adapter to a new/existing BI Viewer component by following the next steps:

  • 1)Click on the BI Viewer component.
  • 2)In the “Data Adapters” tab, click on the plus button.
  • 3)Select the data adapter.
  • 4)Confirm your selection.
  • 5)Save your changes.

OneStream Application Dashboard Excel BI Viewer

Finally, click on the “BI Designer” tab to start building your chart:

OneStream Bi Designer
